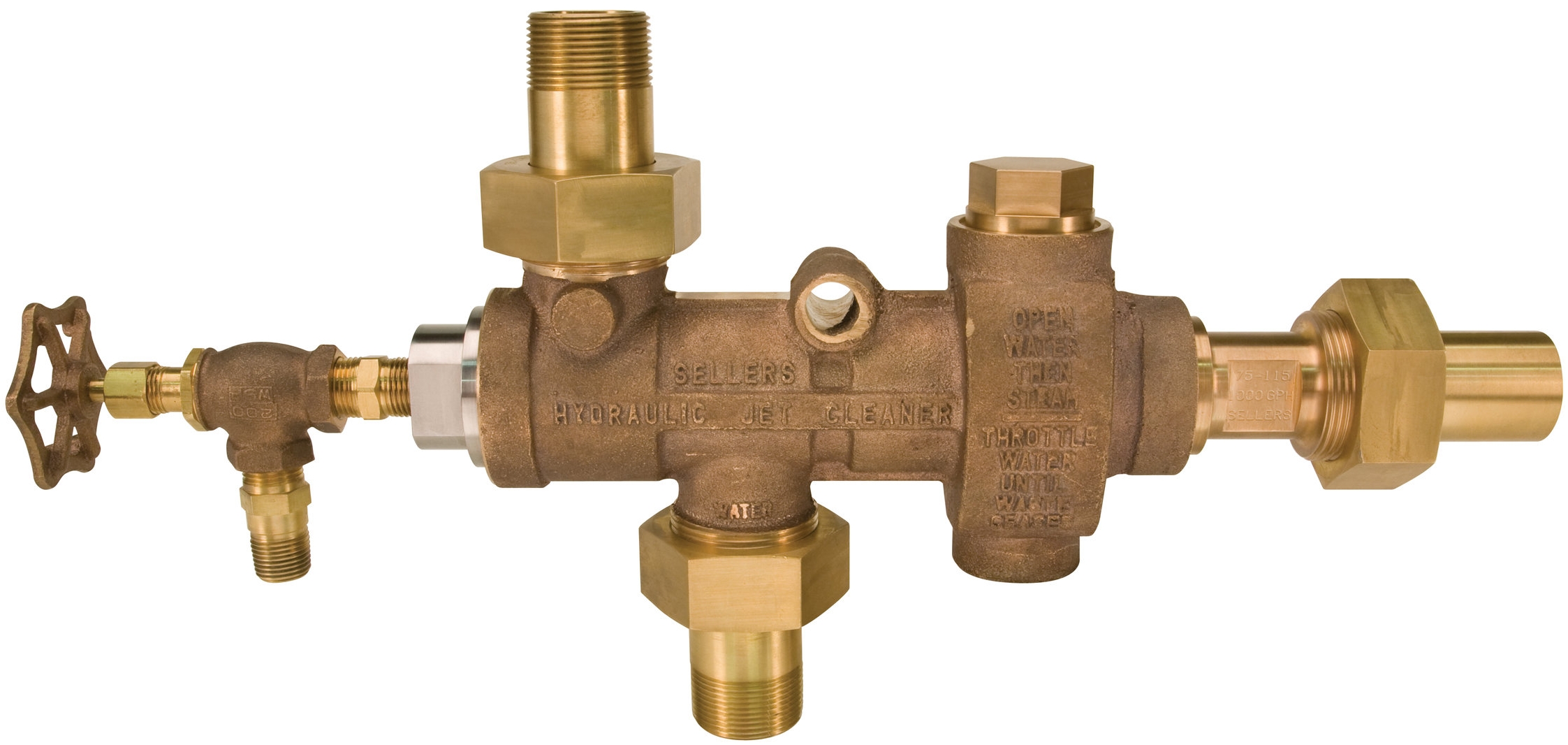

B SERIES HYDRAULIC JETS


The B Jet models are designed for external cleaning of plant equipment and may also be used as feed devices for our small rotating tank cleaners. The B Jet is available in five (5) model capacities: B250, B450, B600, B1000 and B1250 GPH. This series requires a minimum of 60 psi steam and will combine cold water and steam to provide a high-pressure, hot water discharge solution, which is generally 2⅓ times the input steam pressure. NO MOVING PARTS.

The B Series is designed to be used with Sellers’ ¾” wire braid hose with spring protectors and swivel connections and the auto-shutoff safety lances and nozzles.

Downloads

► B/BX Brochure
► B/BX Jet Accessories
► B/BX Performance Curves
► B/BX Operation & Maintenance Instructions
► B/BX General Specifications


B/BX SERIES

B/BX SERIES MAINTENANCE

B/BX INJECTORS PRINCIPLE OF OPERATION
