2" Troll Ball

The Sellers Troll Ball model is a fluid-driven unit. The ball of the unit rotates at a slow speed, ensuring effective impingement of the cleaning solution on the interior walls. The troll balls offer improved cleaning over traditional static spray balls when required.

The 2″ Troll Ball fits through a 2″ opening, weighs 2 1/4 lbs, offers four different spray patterns and is suitable for CIP installation.

The 2″ Troll Ball operates from 50-200 psi (3.5-14 bar), and the flow capacity is 13-34 gpm (2.6-17.7 m3/h). It offers an effective cleaning radius of 6 ft (1.8 m), is constructed of 316 stainless and food grade approved materials.

Specifications

  • Minimum Opening: 2.0" / 50mm
  • PSI / Bar: 50-200 / 3.5-13.8
  • GPM / LPM: 13-34 / 49-129
  • Radius: 6' / 1.8m

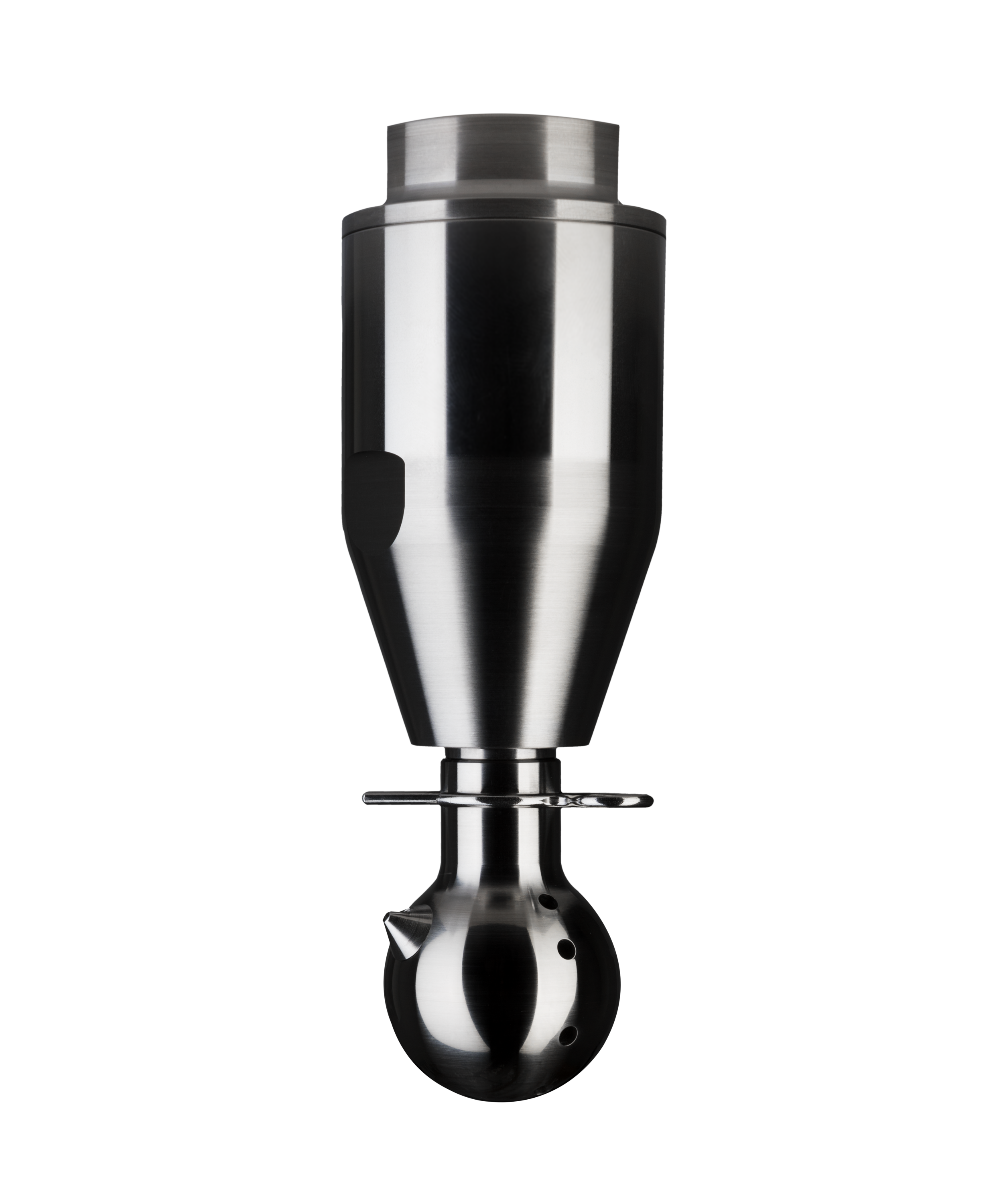

2" TROLL BALL OUTSIDE

2" TROLL BALL IN TANK
