Drum Major

The Sellers Drum Major offers a slimline sanitary design and is ideal for CIP or portable applications with tank openings as small as 2″ with a 7/8″ probe or shaft which fits through even smaller keg or drum bungholes.

The Drum Major is hydraulically driven by the pressure of the cleaning solution, and the shaft rotates at a slow speed, ensuring a forceful impingement from any installation position.

This model operates from 50-180 psi (3.4-12.4 bar), and 12-30 gpm (2.7-6.8 m3/h) and offers an effective cleaning radius of 6 ft (1.8 m). A choice of four spray patterns are available.

This model features the simplicity of a design constructed of 316 stainless and food grade approved materials and provides ease of field service.

Specifications

  • Minimum Opening: 2.0" /50mm
  • PSI / Bar: 50-180 / 3.5-12.4
  • GPM / LPM: 12-30 / 45-114
  • Radius: 6' / 1.8m

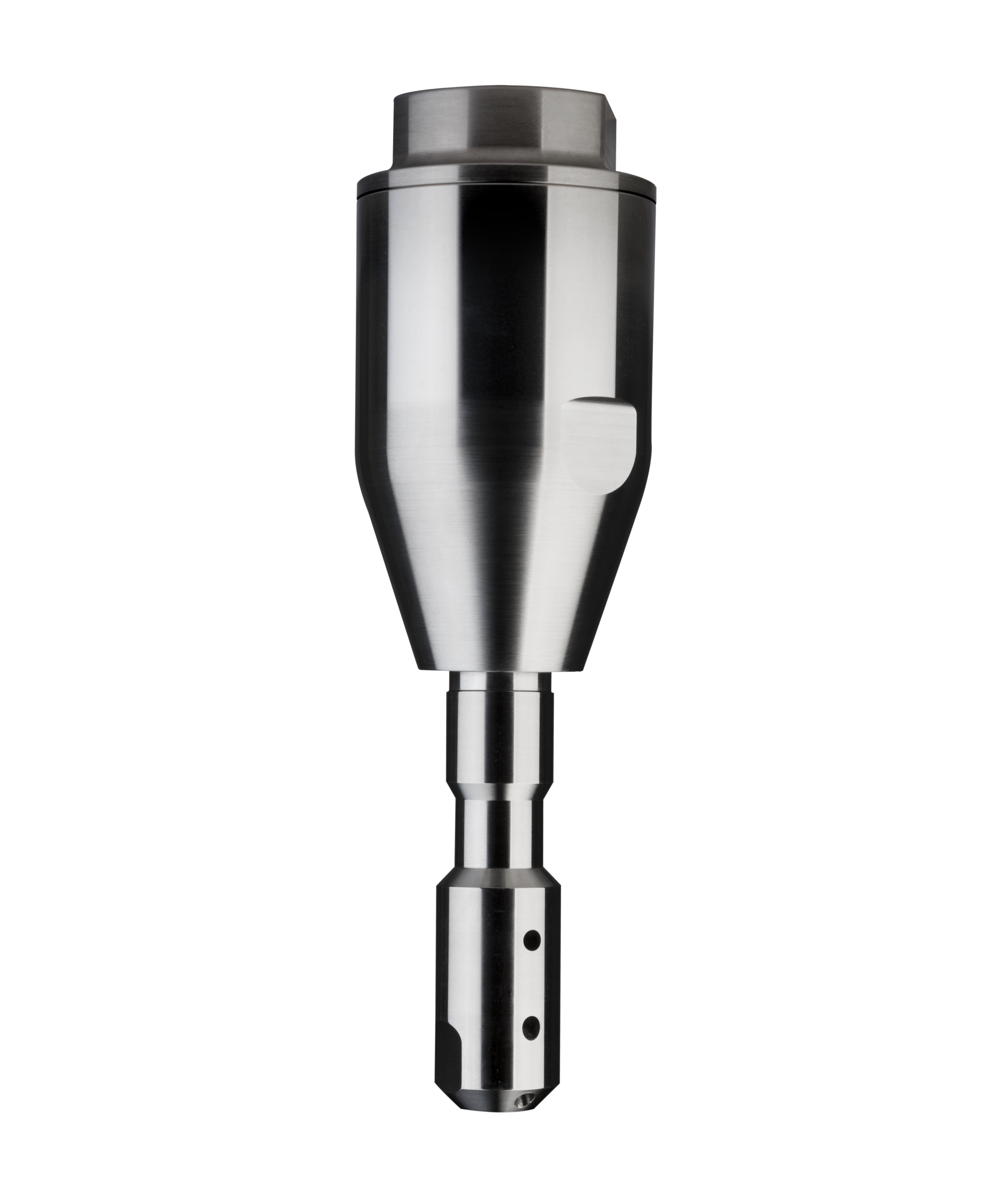

DRUM MAJOR OUTSIDE

DRUM MAJOR IN TANK
