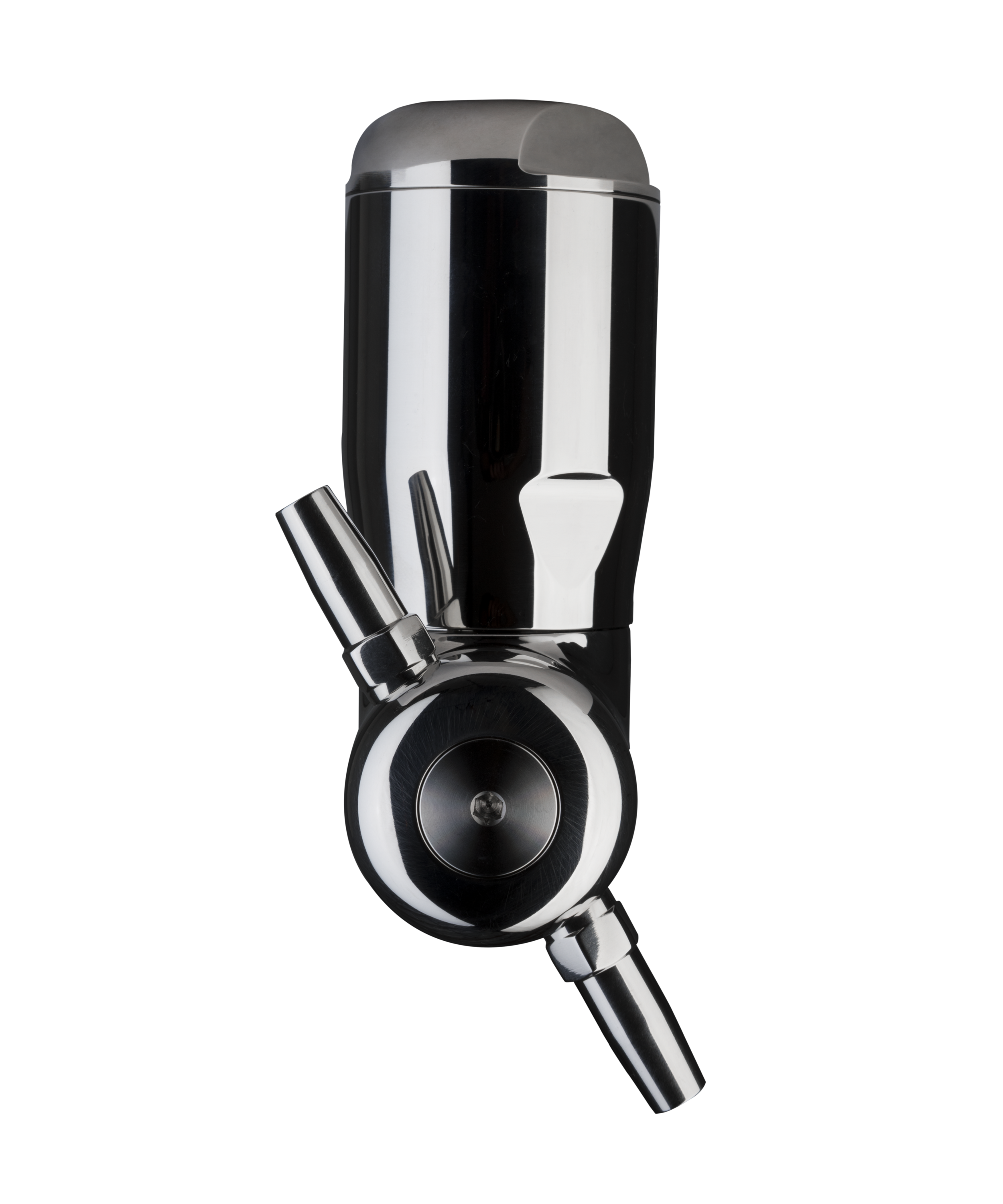

Hygienic 2

The new Hygienic 2 incorporates the proven performance and self-cleaning, self-draining capabilities of the dual-nozzle Orbi-G3 and four-nozzle Orbi-G4 models, but also offer a more hygienic appearance — with no exposed gears that may get damaged during insertion into small openings in a portable installation.

The Hygienic 2 effectively and thoroughly cleans the tanks and process vessels, with a minimum of cost and maintenance, for a variety of applications in the brewing, chemical processing, food processing, bulk transport and pharmaceutical industries.

These models are hydraulically driven by the cleaning solution and will provide a thorough 360-degree cleaning pattern every 45 revolutions. The hydraulic drive gives it longer life and more reliability, without any internal drive gears to worry about. Ease of field maintenance!

Specifications

  • Minimum Opening: 3" / 72 mm
  • PSI / Bar: 50-300 / 3.4-20.6
  • GPM / LPM: 12-27 / 45-102
  • Radius: 15' / 4.6m

HYGIENIC 2-234 OUTSIDE
